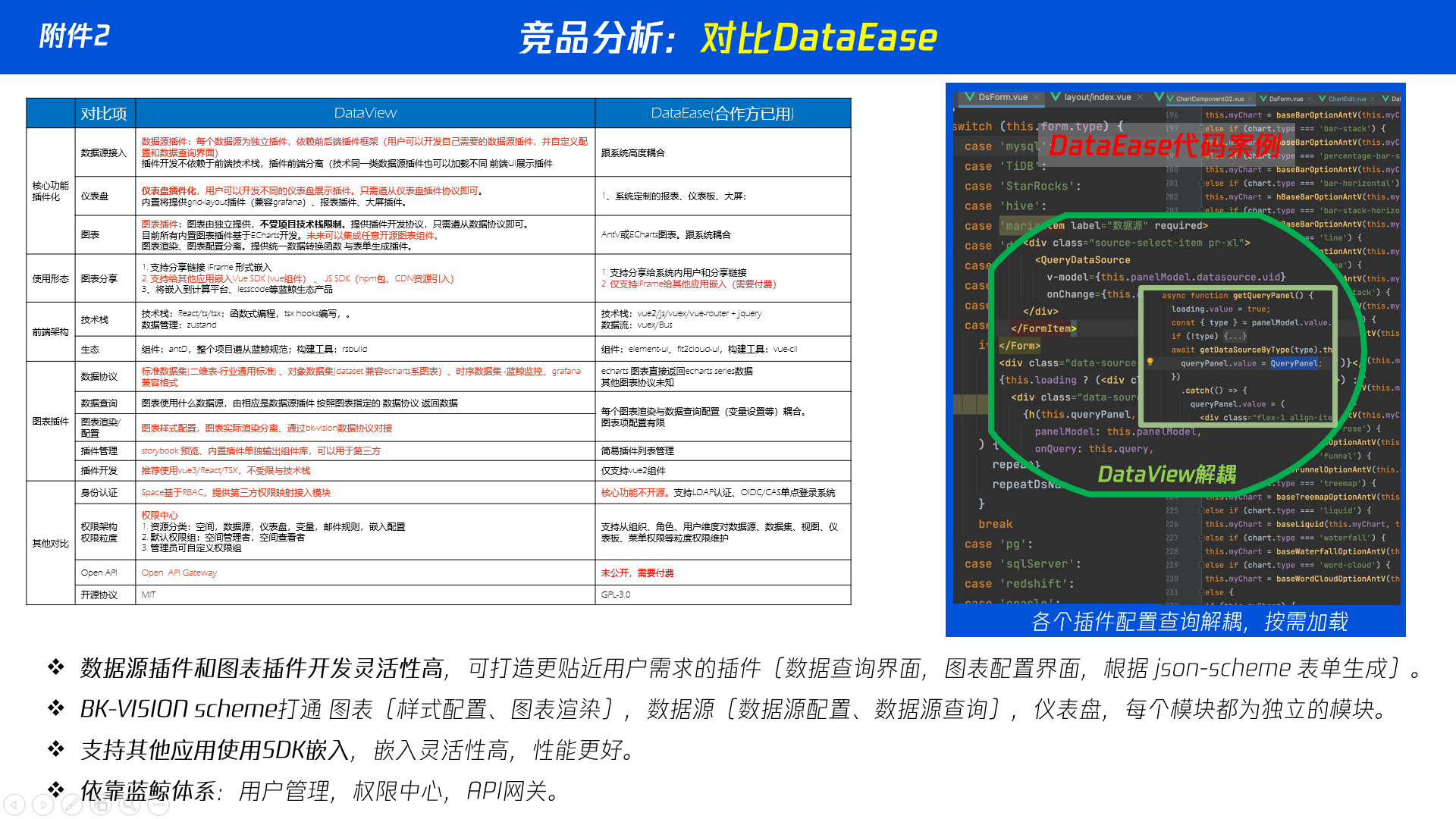

DataEase作为国产开源的数据集可视化BI工具，我们与其对比如下： img.png

迁移可能性探讨

  • 前端层面，布局可以通过我们的脚本顺利迁移
  • 数据层面，需要再在数据集上面做进一步沟通。

具体设计方面，请查看DataView的前端系统架构设计文档、接口设计文档。

我们提供迁移服务，迁移方案如下：

仪表盘层级

仪表盘的关键属性对照表

DataView属性 属性说明 映射属性
title 标题 name
panels 图表列表 view_list
filters 面板筛选变量 inst_filter
build_in 是否内置（仪表盘） --
type 仪表盘类型（大屏、网格布局、列表布局） --
colors 面板使用的图表主题色彩（用户可以自定义） --
style 面板样式，具体查看DataView 图表与仪表盘(通用配置) 样式设置 --
actionMapPanelRelation 图表与交互组件的关系（比如筛选器、时间选择器应图表之前的关系） --
panel_links 图表联动关系 --

为什么DataView 关系直接保存在面板中而不是图表中。

  • panel_links：图表联动关系
  • actionMapPanelRelation：交互组件与图表的联动关系。

原因：

  • 因为不同仪表盘的图表关系 表现形式不一样。比如栅格布局（grid-layout)与卡片布局（列表模式），交互形式不一样。
  • 比如交互组件与图表之间的关系。可能存在需要先查询交互组件，再渲染图表（交互组件未渲染完成前，相关图表需要等待）。把相关的关系直接存在hash表里面，布局渲染时候可以直接获取相关信息。
  • 关系在编辑完成后直接确认好，单纯查看面板，相关的关系计算更加简单。也无需关系相关的事件传递考量。

图表层级

图表的关键属性对照表

title 图表标题 name sub_title 图表副标题（描述信息） -- type 图表类型（如折线图、柱状图……) type mode 插件模型（可以是交互组件、仪表盘） -- category 插件类型（比如折线图、柱状图都属于柱线图；饼图、玫瑰图都属于饼图) -- data_type 数据类型 --

DataView属性名 类型 描述 对标属性
uid string 图表唯一标识 --
space_uid string 空间uid --
type string 图表类型，如 line-chart bar-chart status-chart type
category string 图标分类，如折线图与柱状图都属于柱线图这个分类，具体分类有：多媒体、柱线图、地图 widget？
mode string 插件模型，如：chart（图表类）、action（交互类） --
title string 图表title name
sub_title string 副标题 --
description string 图表描述 --
data_type string 图表数据类型（比如时序图采用points格式，其它用row格式），具体查看 数据源查询API 数据类型结构。 --
build_in boolean 是否内置插件 --
meta BaseMetaInfo 图表元数据 --
father_uid string 图表父级uid --
gridPos IGridPos 图表位置 x、y、z等
filters FilterType[] 图表内置变量 --
dataset PanelModelDataSet 数据集 --
query QueryPanelClass 图表query配置 trinoDesc
panels PanelModel[] 组内视图列表 --
chartStyle ChartStyle 图表样式配置 --
chartConfig ChartConfig 图表属性配置项 config
advanceConfig AdvanceConfig 图表高级配置项 --
collapsed boolean 是否折叠 --

图表属性子对象说明

IGridPos

图表布局信息封装在 gridPos 里面。

  • 这个合grafana等平台保持一致。
  • 因为不同图表类型，图表的最大值、最小值、是否可拖动、可改变尺寸等的默认值不同。
  • 这个里面属性本身较多，封装起来，代码逻辑更加清晰。
  • 图表不止网格布局，还有可能是大屏布局。不同仪表盘，IGridPos有不同的Class 生成。
属性名 类型 默认值 描述
i string '0' id
x number 0 左边距，类似left，默认1 = 30px
y number 0 上边距，类似top，默认1 = 30px
w number 12 宽度，100% 分为24分，24即为100%
h number 6 高度，默认1 = 30px
maxW number undefined GRID_COL_NUM
maxH number undefined GRID_CELL_MAX_HEIGHT
minW number undefined GRID_CELL_MIN_WIDTH
minH number undefined GRID_CELL_MIN_HEIGHT
static boolean undefined -
moved boolean undefined -
isDraggable boolean undefined -
isResizable boolean undefined -

chartConfig

图表配置属性配置，表格echarts、表格等属性配置。由不同的图表的表单 From（class）生成，这个封装在图表插件中（Form对于 PropsPanel表单UI提供用于配置表单）。具体查看DataView文档。

advanceConfig

图表设置的高级配置。具体查看DataView文档。

query

DataView分为简易模式，指标维度配置参数和图表插件的元数据有逻辑关系。不同插件的元素数据，query配置不一样。具体查看DataView文档。 sql模式 ，感觉可以迁移 trinoDesc。这个具体需要后台看怎么做数据映射。

** ChartStyle**

图表样式设置，如是表框样式设置、主题色等设置、标题样式设置等。

属性名 类型 默认值 描述
border object {color: '#000', width: 1, style: 'none', radius: 0} -
info ChartStyleInfo new ChartStyleInfo() -
background object {color: '#fff', position: 'center', size: 'contain', repeat: 'no-repeat', showBgImg: false, localUrl: '', url: '', bgType: 'local', opacity: 30} -

ChartStyleInfo

属性名 类型 默认值 描述
title ChartStyleInfoMeta new ChartStyleInfoMeta('#313238') -
sub_title ChartStyleInfoMeta new ChartStyleInfoMeta('#979BA5', false) -
description ChartStyleInfoMeta new ChartStyleInfoMeta('#ffffff', false) -

** ChartStyleInfoMeta**

属性名 类型 默认值 描述
show boolean true -
color string '#979BA5' -
align string 'start' -

PanelModelDataSet

属性名 类型 默认值 描述
dataset_uid string '' -
datasource_uid string '' -
db_type keyof typeof DatasourceTypeEnum null -

图表数据设置

嘉为的数据结构：

{
  "name": "仪表盘",
  "time_range": "15",
  "range_type": "minute",
  "config_set": {
    "searchTxt": "",
    "refreshTime": 0
  },
  "inst_filter": [],
  "view_list": [
    {
      "h": 6,
      "i": 0,
      "w": 12,
      "x": 0,
      "y": 0,
      "name": "表格",
      "type": "log-table",
      "moved": false,
      "widget": "log-table",
      "loading": false,
      "isRefresh": false,
      "config": {
        "name": "统计分析: filebeat_log_file_path",
        "dashboard_id": 117,
        "bk_obj_id": "",
        "metric": "",
        "metric_id": "",
        "table_id": "",
        "aggregate_type": "",
        "view_type": "log-table",
        "threshold_compare": "",
        "threshold_value": "",
        "threshold_unit": "",
        "logParams": {
          "group": [
            {
              "unit": "minutes",
              "field": "filebeat_log_file_path",
              "limit": 15,
              "duration": 1,
              "direction": "column",
              "isDateType": false
            }
          ],
          "order": [],
          "barMode": "group",
          "measure": [
            {
              "name": "",
              "type": "count",
              "field": "filebeat_log_file_path",
              "isPercentile": false
            }
          ],
          "logGroup": [
            "650164a49fe5d37840eefccb"
          ],
          "trendDirect": "up",
          "aceEditorVal": "*",
          "columnRollup": true,
          "trendChecked": false
        }
      }
    },
    {
      "h": 10,
      "i": 1,
      "w": 6,
      "x": 0,
      "y": 6,
      "id": 0,
      "name": "表格",
      "type": "senior-table",
      "moved": false,
      "widget": "senior-table",
      "isRefresh": true,
      "config": {
        "name": "trino高级-表格",
        "dashboard_id": 117,
        "bk_obj_id": "",
        "metric": "",
        "metric_id": "",
        "table_id": "",
        "aggregate_type": "",
        "view_type": "senior-table",
        "threshold_compare": "",
        "threshold_value": "",
        "threshold_unit": "",
        "showAsset": false,
        "threshold": {
          "sign": "=",
          "color": "#E51407",
          "value": ""
        },
        "trinoDesc": "SELECT \n  CASE WHEN src < dst THEN src ELSE dst END AS src,\n  CASE WHEN src < dst THEN dst ELSE src END AS dst,\n  SUM(c) AS total_c\nfrom Table(datainsight.system.query(streams=>'netflow',type=>'sql',query=>'select nf_src_address as src, nf_dst_address as dst,count(*) as c from $index where nf_src_address is not null and nf_dst_address is not null and nf_src_address!=\\\"0.0.0.0\\\" and nf_dst_address!=\\\"0.0.0.0\\\" group by nf_src_address,nf_dst_address order by count(*) desc limit 50'))\nGROUP BY \n  CASE WHEN src < dst THEN src ELSE dst END,\n  CASE WHEN src < dst THEN dst ELSE src END",
        "sourceField": "",
        "targetField": "",
        "measureField": ""
      }
    }
  ]
}

DataView数据结构

{
